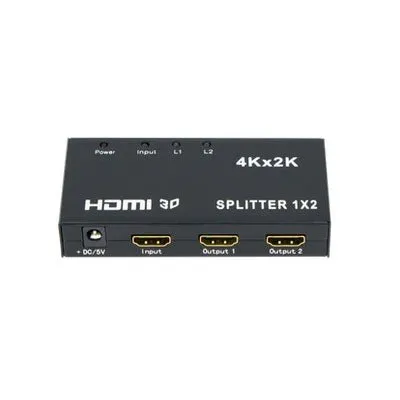

This 1x2 HDMI splitter can connect a source device to 2 display devices via HDMI output interfaces. The displays will all have the same image.

Features:

• 1 X HDMI input, 2 X HDMI output.
• HDMI resolution up to 4K @ 60fps
• Supports Automatic EDID
• Supports multi resolution output
• Supports Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
• DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
• transmission distance up to 10ft
• Transmits lossless audio and video signal

Specifications:

Suppoort HDMI HDCP Version ............................................HDCP 2.2

HDMI Input/Output Resolution.........................................Up to 4K/60fps

Support HDMI Video Color Format............................................2160p, 10/12 bits,24/25/30Hz, 2160p, 10/12 bits, 50/60Hz

HDMI MaxBandwidth..............................................................600MHz

HDMI Audio Format...................DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/DSD

HDMI Max Baud Rate..............................................................18Gbps

Input Output TMDS Signal.......................................0.5~1.5Vp-p(TTL)

Input Output DDC Signal....................................................5Vp-p(TTL)

HDMI Input Cable Distance..........AWG26 HDMI Standard Cable, 10ft max

HDMI Output Cable Distance.......AWG26 HDMI Standard Cable, 10ft max

Max Working Current................................................................300mA

Power Adapter Format..................AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range............................................-10° 55°

Storage Temperature Range...............................................-20°~ 60°

Operating Humidity Range..............10~90%RH(No Condensation)

Storage Humidity Range....................5~95%RH(No Condensation)
