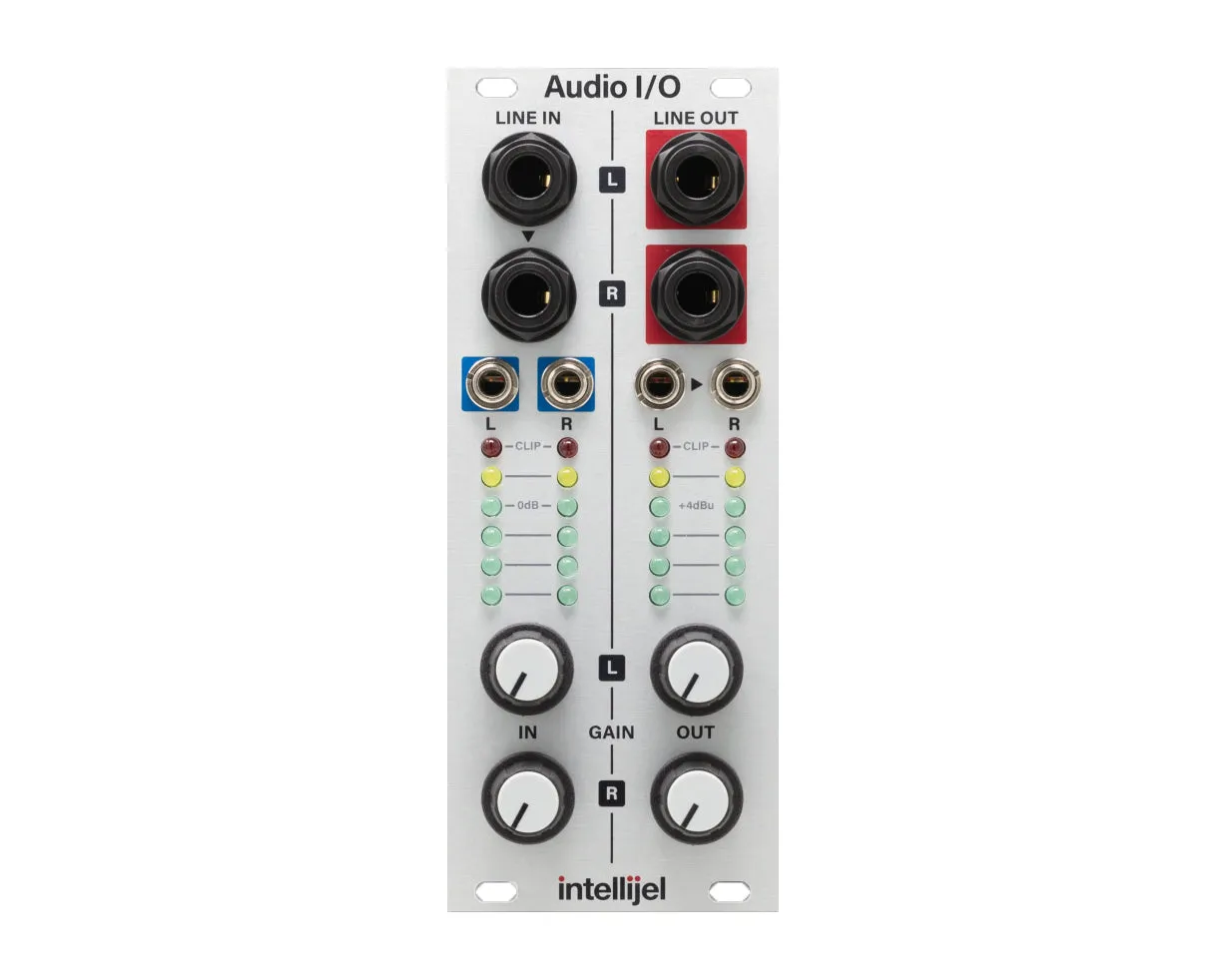

The 2023 version of the Intellijel Audio I/O is a facelifted version of the trusty original allowing you to seamlessly interface your Eurorack system with external devices like effects, recorders, and line level synths and drum machines.

• 2 x Balanced TRS 1/4″ to Eurorack modular level input paths
• 2 x Eurorack modular level signals to Balanced TRS 1/4″ output paths
• 4 x six stage analog led VU meter to monitor all inputs and outputs simultaneously
• Input path has up to 20dB of gain, which allows you to patch in low-level consumer-level signals and boost them.
• The output path allows a nominal Eurorack signal (10 Vpp) to be adjusted for a balanced 4dBU line level output level
• 3pin CHAIN IN connector for other modules/case connectors

• 3-pin CHAIN OUT connector for other modules/case connectors

• WIDTH:  10HP

• DEPTH:  39mm
• POWER:  75mA @ 12V   70mA @ -12

Product Specs

• Item Number: 27100
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Canada
• MPN: AUDIOIOV4-3U
• Modular Grid: Eurorack
• Dimensions: 10 HP 39 mm deep
• Power: 75 mA 12V 70 mA -12V ? mA 5V
