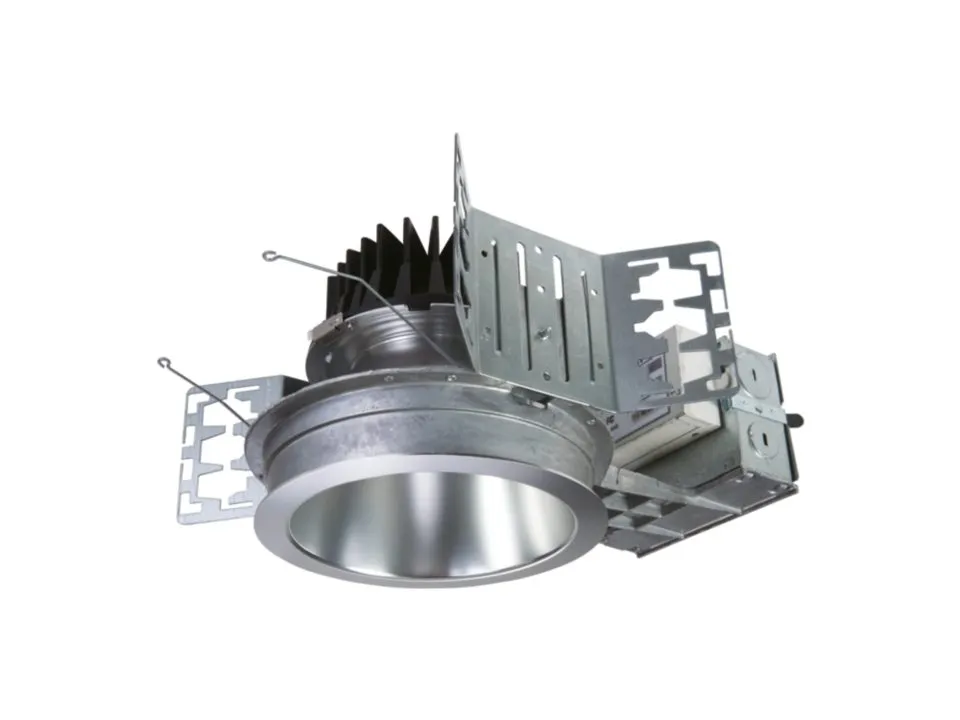

Portfolio Lighting LDS6C Recessed Light

The 6" new construction recessed shallow downlight, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available with die cast aluminum, spun aluminum and injection molded non-conductive reflectors with light output of up to 4,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• New construction downlight for shallow plenum space
• Excellent light control and low aperture brightness
• Designed for shallow plenums, ENERGY STAR® qualified
• Round die-cast, spun aluminum or non-conductive reflectors
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
• W2N Tunable White 2700K-6500K or 2000K-5000K
• Lumens: 1,000-4,000, 0-10V dimming down to 1%
• Optional snap in or remote driver
• WaveLinx and DLVP connected lighting systems compatibility
