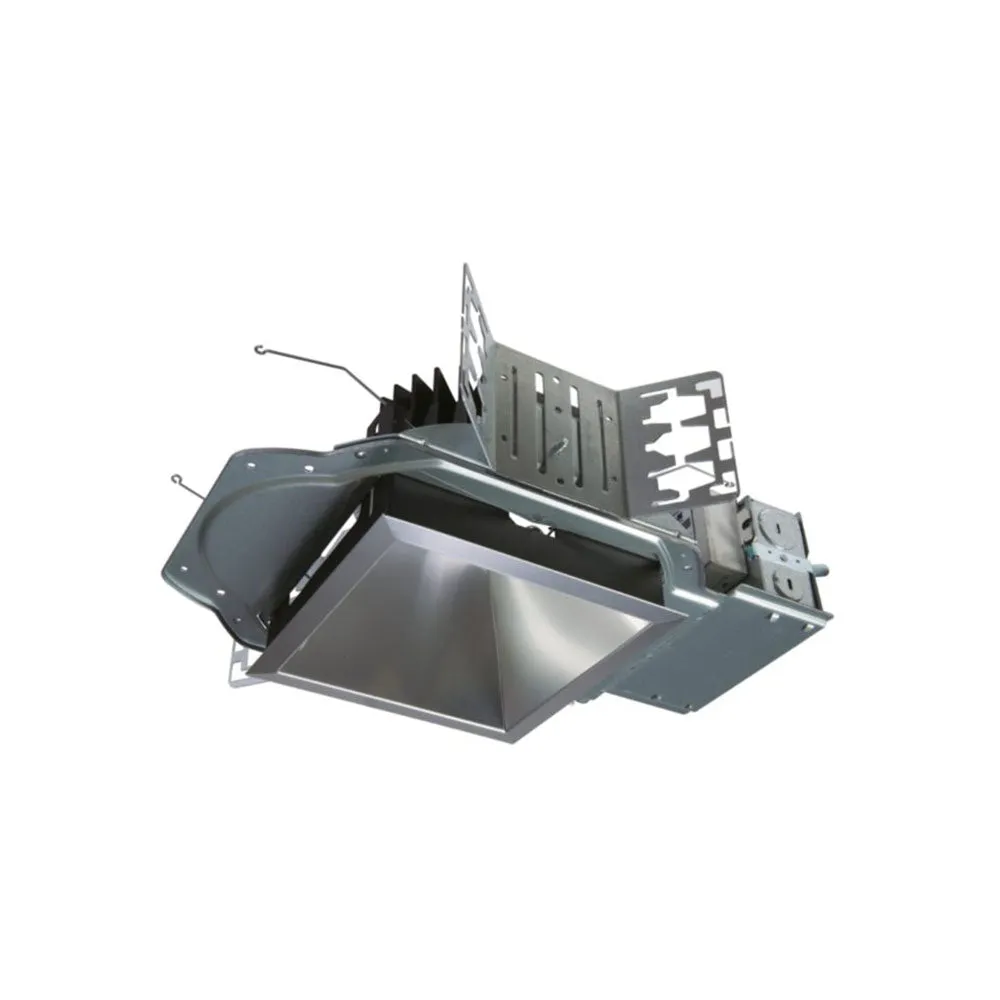

Portfolio Lighting LDSQ6C 6 Inch Recessed Downlight

The 6" LED square new construction recessed downlight, also available as a lensed wall wash luminaire, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. Adjustable collar adjusts for up to 2" thick ceilings and rotates /- 7.5°. Available with die-cast or spun aluminum reflectors with light output of up to 15,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Square new construction downlight or lensed wall wash, ENERGY STAR® qualified
• Collar adjusts for up to 2" thick ceilings and rotates /- 7.5°
• Excellent light control and low aperture brightness
• Lumens: 1,000-15,000, 0-10V dimming down to 1%
• 90, 97 or 98 CRI, 6 color temperatures, tunable white and dim to warm
• Square anodized aluminum, or die-cast reflectors
• WaveLinx and DLVP connected lighting systems compatibility
• Optional snap in or remote driver
• Plaster lathing ring accessory offered for flush reflector transition
