All 444C compressors feature a head assembly that includes a newly-developed, patents pending intercooler head. Additionally, they are equipped with a stainless steel braided leader hose with inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

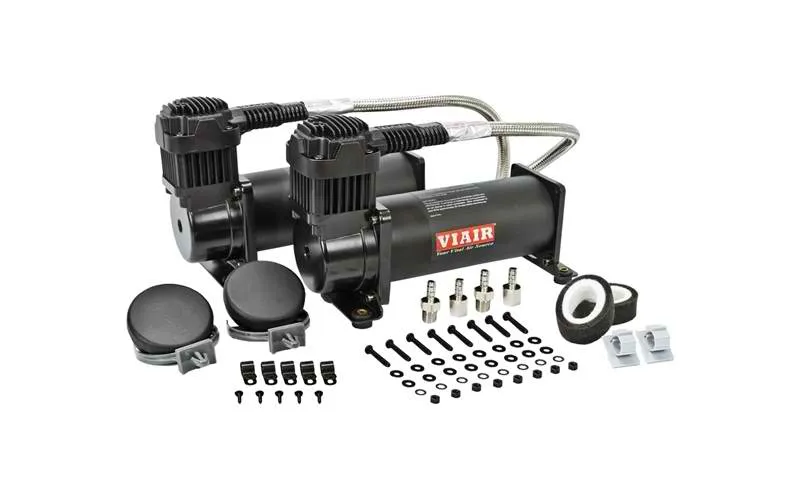

INCLUDED PARTS:

• (2) 444C Black Compressors
• Intercooler Head (Patents Pending)
• (2) Air Filter Assemblies
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (8) Sets of Nuts, Bolts, Washers and Lock Washers
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• (6) Airline Clips

SPECIFICATIONS:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 40 Amps
• Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
• Net Weight: 21.60 lbs.
