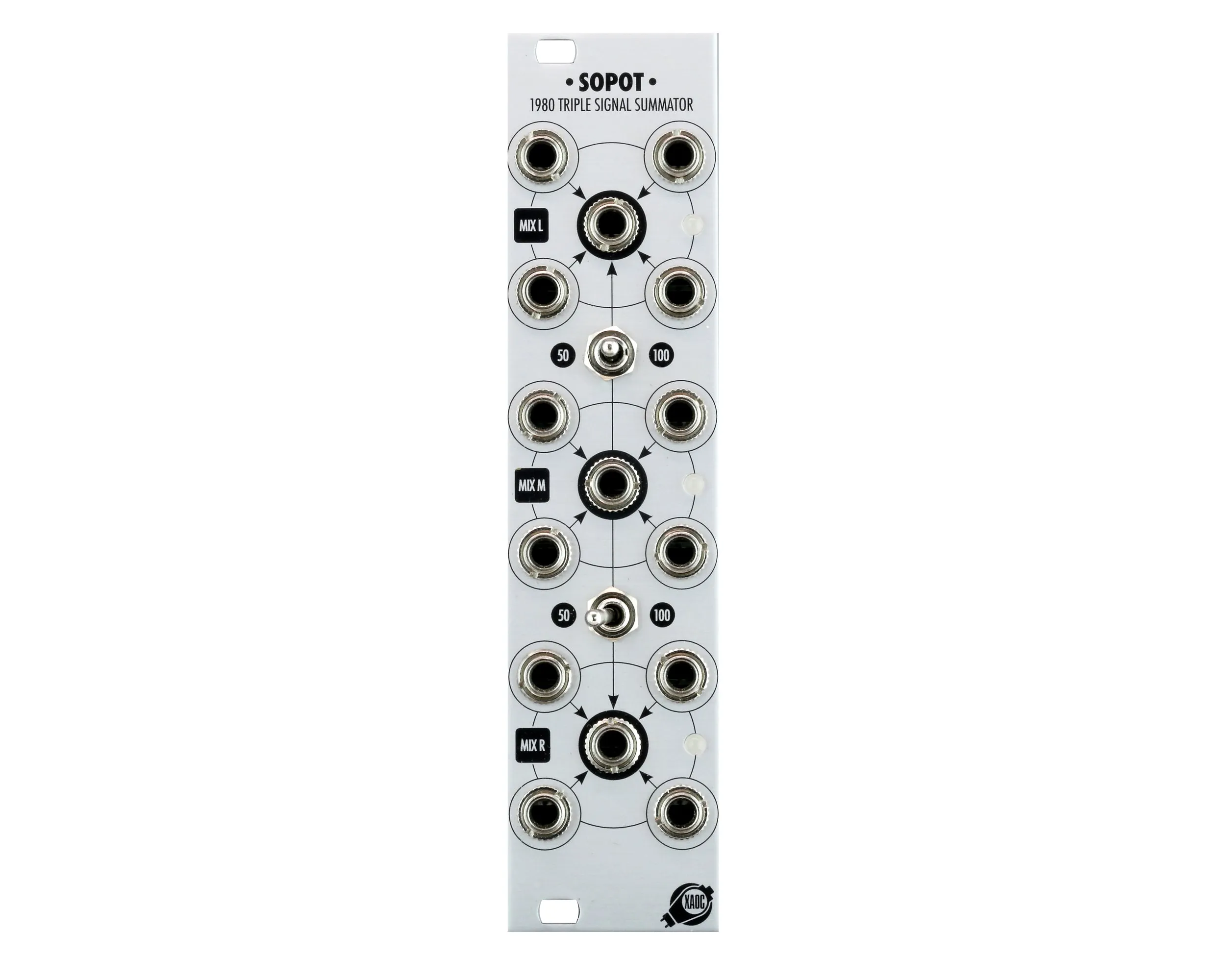

Sopot is a compact utility module handy when the need arises to sum multiple stereo and mono sound sources (up to four signals for each section). It is a triple summing mixer featuring three signal adding sections with the middle one optionally fed to the top and bottom ones. The contribution of the middle section is switchable between 0%, 50%, and 100%. Each of the summing sections is built with high quality audio opamps and features a soft clipping circuit for nice saturation. Gain can be optionally reduced to -12dB in order to allow summing of hot signals.

Main features:

• three independent summators 4:1
• middle section normalled to the upper and lower ones
• gain attenuations for the normalization
• 6HP
• 30mm depth (including ribbon cable bracket)
• 12V: 30mA / -12V: 20mA

Product Specs

• Item Number: 23789
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-SOP
• Modular Grid: Eurorack
• Dimensions: 6 HP 30 mm deep
• Power: 30 mA 12V 20 mA -12V 0 mA 5V
